Spindle Diameter - 200 MM
Ram Size- 520 x 520 MM
Vertical Head Travel, Y- 3300 MM
Horizontal Column Travel, X - 4500 MM
Ram Travel -1600 MM
Spindle Travel - 2000 MM
 Spindle Speeds: 1.5 to 630 RPM
 Spindle Taper:  #120 Metic W/#50 Adapter
Rapid Traverse:  3200 mm/min
Feeds:
Spindle- 0.5 - 3200 MM
Ram - 05 - 3200 MM
 Vertical - 1 - 3200 MM
 Longitudinal - 1 - 3200 MM

Equipped With:

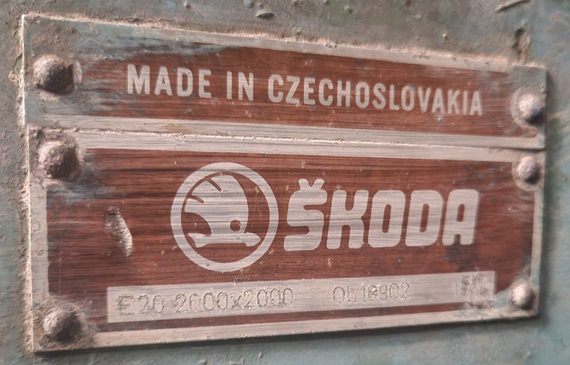

 Rotary table model E20 , size : 2000x2000mm, 20Tons Loading capacity
Floor Plates : 3750 x 1250 x 300 MM, 2 Nos.
