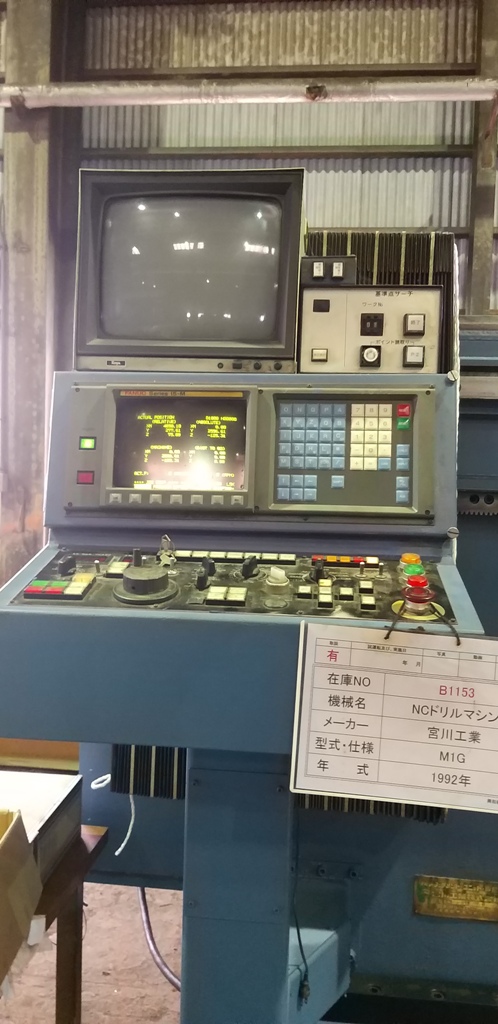

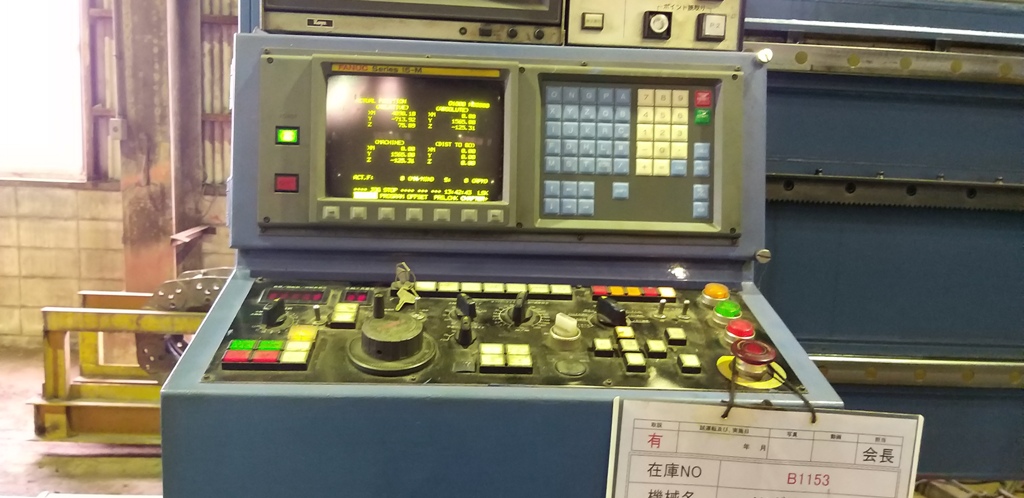

Control : FANUC 15M
Machine Specifications :
Number of Spindle : 1no
Spindle Hole Taper : BT50
Spindle Diameter : 90mm
Travel :
        X Axis : 32750mm
	Y Axis : 6000mm + 700mm (ATC)
	Z Axis : 450mm
Floor to Spindle Gap : 800mm
        Z Vertical Gap : 850mm
        Between Column : 6800mm
Rapid Speed : X Axis : 18000mm/min
Y Axis : 18000mm/min
Z Axis : 10000mm/min
Positioning Speed : Z Axis : 1 – 4,000mm/min
AC Spindle Motor : 15.00 kw
X Axis Servo Motor : 2.8 Kw,  2 Synchronous operation
Y Axis Servo Motor : 1.8 Kw
Z Axis Servo Motor : 4.0 Kw with Brake
For Cutting Oil : 2.2 Kw
For Lubrication : 0.075 Kw
Number of Control Axis : 4 Axis ( x1, x2, y, z axis)
Number of simultaneously controlled Axis : 3 Axis ( x, y Axis)

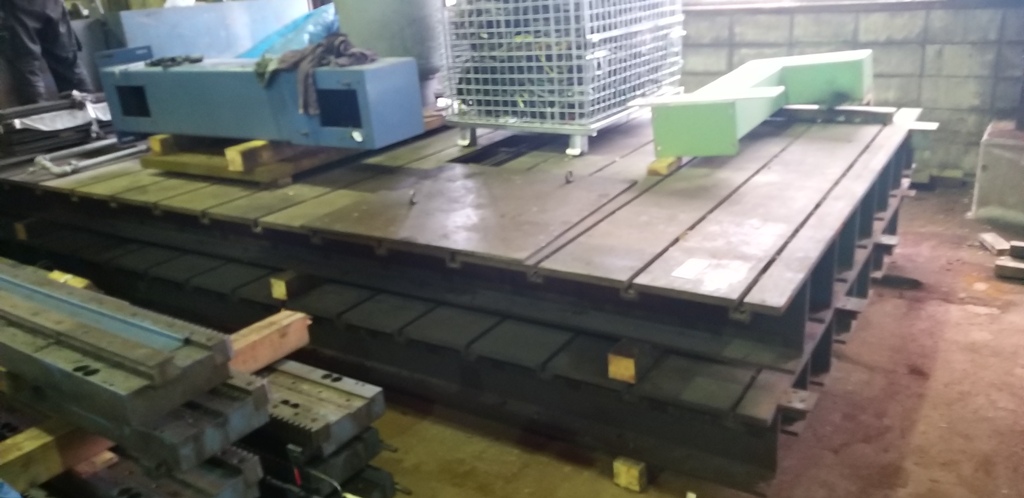

Floor Plate - 2nos. ( 6300x2500x300mm each)
